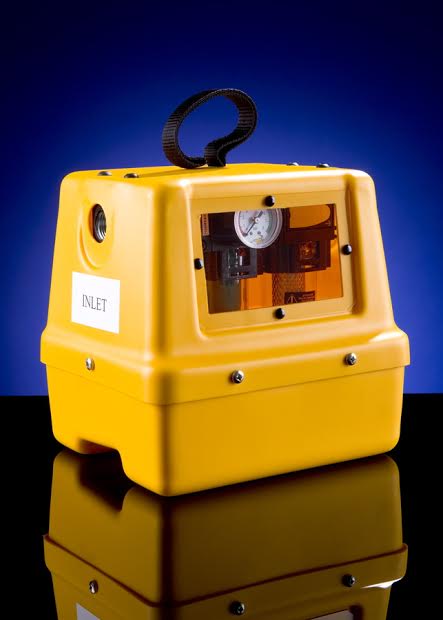

AIR FILTER BOX UNIT

AIR FILTER BOX UNIT
The air filter box can supply 840 Litres / (29cfm) minute with the filters housed ina tough HD Chemically resistant plastic box.
The filter box is fitted with automatic drains, when pressure is shut off the filters will drain automatically via a drain hole in the back of the unit.
The unit is fitted with a 1/2" BSP female thread at its inlet and outlet ports.

BENEFITS


  • The unit is fitted with three filters, Pre filter , Oil filter and Gas filter and weighs only 5 kg.
  • Easy to read pressure gauge and inspection window
  • Supply’s enough Air for 2 sets of air fed Equipment
  • Minium maintenance with self draining filters.


PRIMARY FILTER

This removes any remaining debris not stopped by the coarse filter on your compressor unit


SECOND STAGE FILTER (.01 micron)

This is an ultra high efficency filter which removes oil mist, sub micron particles and water.



THIRD STAGE FILTER

This is an activated carbon filter which will absorb any remaining oil or hydro-carbon gases which may be left.
If visually inspected the colour will change from white to red to indicate replacement necessary.

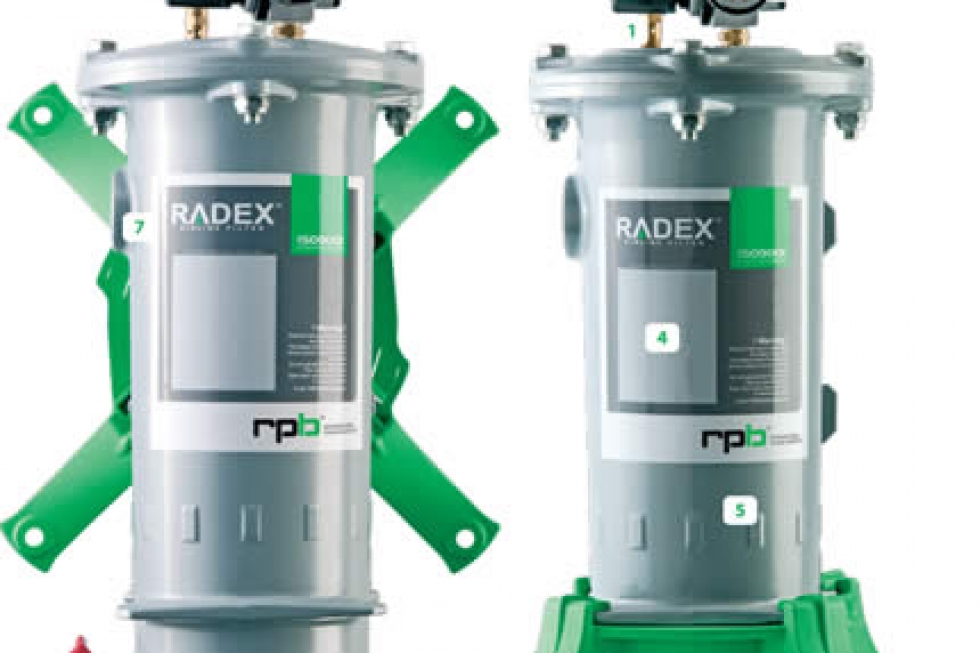

RPB AIR FILTER SYSTEM

RPB AIR FILTER SYSTEM
